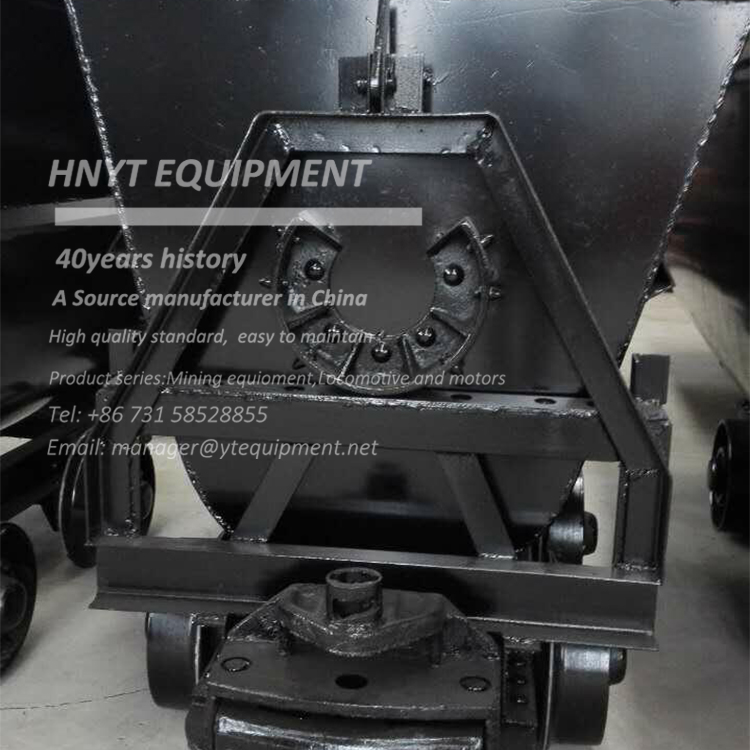

KFU1.2 Bucket-tipping Mining Wagons, 3 ton loading capacity mine car

The KFU1.2 Bucket-tipping Mining Wagons stands as the pinnacle of the KFU series, offering unmatched capacity and performance. With a staggering load capacity of 3 tons and advanced safety features, this powerhouse is capable of tackling the most challenging mining tasks with ease. Experience superior durability, reliability, and efficiency with the KFU1.2—a true helper in the mining industry.

Volume(m3): 1.2

Capacity(T): 3

Weight(kg): 610

Dimensions(mm): 2060*1150*1300

Attention of bucket-tipping mine car

1.Before using the mine car, carefully check the appearance for any serious bumps and damage, and the wheels should rotate flexibly without jamming.

2.In the case that the user abides by the rules for the use of mine car, within six months from the date of delivery, if it is damaged or cannot work normally due to poor manufacturing quality, the manufacturer shall repair or replace it free of charge.

3.When replacing the bearing, the opening of the bearing cage must be opened outwards. After the bearing is installed in the wheel, proper clearance must be maintained and not crushed.

4.The normal service life of the mine car is more than 7500h and generally does not need maintenance. However, according to the place of use and the size of the load, the corresponding maintenance date should be established, and the oil filling and maintenance should be cleaned in time, and the wheel sets with abnormal noise and non-rotating should be replaced in time.

5.The seals should use original parts. Matters needing attention during operation:

a. Operate strictly in accordance with the operating procedures.

b. Overload operation is not allowed.

c. During the working process of the mine cart, the mine cart shall not be cleaned manually.

Warning: Mine carts are strictly prohibited to carry passengers

ModelVolume(m³)Load(T)Gauge(mm)Wheel Base(mm)Wheel Diameter (mm)Traction force (KN)Traction Height(mm)Overall Size(LxWxH)Weight(≤kg)
KFU0.55-60.551.3600500300603201552*850*1150700
KFU0.75-60.751.88600600300603201700*980*1250740
KFU1.0-612600650300603201910*1070*1320760
KFU1.2-61.23600650300603202060*1150*1300610
